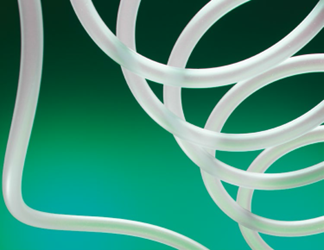

法國Saint-Gobain圣戈班/新一代軟管Ultra系列/鉑金硫化硅膠管
法國Saint-Gobain圣戈班/新一代軟管Ultra系列/鉑金硫化硅膠管
特征/優點
? 可提供兩種硬度，50和65邵氏硬度
? 在美國、法國和印度的多個家工廠生產
? 生物制藥級
? 超低析出
? 高柔軟性
? 激光標刻以保證批次可追溯性
? 超長泵管使用壽命
? 可高溫高壓消毒滅菌
? 無嗅無味
? 使用溫度范圍為-80°F（-62°C）至500°F（260°C）
? 符合USP VI、EP 3.1.9以及ISO 10993標準
? 可提供25-、50-和100-英尺軟管卷盤
典型應用領域
? 無菌灌裝及轉移
? 藥物傳輸
? 細胞培養
? 介質處理
? 衛生蠕動泵軟管
? 生產過濾和發酵
? 生物反應器管線
訂貨信息：
|
Item Number |
I.D.(Inch) |
O.D.(Inch) |
WALL(Inch) 壁厚（英寸） |
PACKAGE
LENGTH(ft.) 包 |
|
ULTRA-C-012-0F |
0.012 |
0.024 |
0.006 |
50 |
|
ULTRA-C-020-0F |
0.02 |
0.036 |
0.008 |
50 |
|
ULTRA-C-025-0F |
0.025 |
0.047 |
0.011 |
50 |
|
ULTRA-C-030-0F |
0.03 |
0.066 |
0.018 |
50 |
|
ULTRA-C-030-2F |
0.03 |
0.155 |
0.062 |
50 |
|
ULTRA-C-040-0F |
0.04 |
0.086 |
0.023 |
50 |
|
ULTRA-C-058-0F |
0.058 |
0.076 |
0.009 |
50 |
|
ULTRA-C-062-1F |
0.062 |
0.125 |
0.032 |
50 |
|
ULTRA-C-062-2F |
0.062 |
0.188 |
0.062 |
50 |
|
ULTRA-C-062-3F |
0.062 |
0.25 |
0.093 |
50 |
|
ULTRA-C-062-4F |
0.062 |
0.313 |
0.125 |
50 |
|
ULTRA-C-062-5F |
0.062 |
0.438 |
0.187 |
50 |
|
ULTRA-C-062-6F |
0.062 |
0.563 |
0.25 |
50 |
|
ULTRA-C-078-1F |
0.078 |
0.141 |
0.032 |
50 |
|
ULTRA-C-078-2F |
0.078 |
0.203 |
0.062 |
50 |
|
ULTRA-C-078-3F |
0.078 |
0.266 |
0.093 |
50 |
|
ULTRA-C-078-4F |
0.078 |
0.328 |
0.125 |
50 |
|
ULTRA-C-078-5F |
0.078 |
0.453 |
0.187 |
50 |
|
ULTRA-C-078-6F |
0.078 |
0.578 |
0.25 |
50 |
|
ULTRA-C-093-1F |
0.093 |
0.156 |
0.032 |
50 |
|
ULTRA-C-093-2F |
0.093 |
0.219 |
0.062 |
50 |
|
ULTRA-C-093-3F |
0.093 |
0.281 |
0.093 |
50 |
|
ULTRA-C-093-4F |
0.093 |
0.344 |
0.125 |
50 |
|
ULTRA-C-093-5F |
0.093 |
0.469 |
0.187 |
50 |
|
ULTRA-C-093-6F |
0.093 |
0.594 |
0.25 |
50 |
|
ULTRA-C-125-1F |
0.125 |
0.188 |
0.032 |
50 |
|
ULTRA-C-125-2F |
0.125 |
0.25 |
0.062 |
50 |
|
ULTRA-C-125-3F |
0.125 |
0.313 |
0.093 |
50 |
|
ULTRA-C-125-4F |
0.125 |
0.375 |
0.125 |
50 |
|
ULTRA-C-125-5F |
0.125 |
0.5 |
0.187 |
50 |
|
ULTRA-C-125-6F |
0.125 |
0.625 |
0.25 |
50 |
|
ULTRA-C-156-1F |
0.156 |
0.219 |
0.032 |
50 |
|
ULTRA-C-156-2F |
0.156 |
0.281 |
0.062 |
50 |
|
ULTRA-C-156-3F |
0.156 |
0.344 |
0.093 |
50 |
|
ULTRA-C-156-4F |
0.156 |
0.406 |
0.125 |
50 |
|
ULTRA-C-156-5F |
0.156 |
0.531 |
0.187 |
50 |
|
ULTRA-C-156-6F |
0.156 |
0.656 |
0.25 |
50 |
|
ULTRA-C-187-1F |
0.187 |
0.25 |
0.032 |
50 |
|
ULTRA-C-187-2F |
0.187 |
0.313 |
0.062 |
50 |
|
ULTRA-C-187-3F |
0.187 |
0.375 |
0.093 |
50 |
|
ULTRA-C-187-4F |
0.187 |
0.438 |
0.125 |
50 |
|
ULTRA-C-187-5F |
0.187 |
0.563 |
0.187 |
50 |
|
ULTRA-C-187-6F |
0.187 |
0.688 |
0.25 |
50 |
|
ULTRA-C-250-1F |
0.25 |
0.313 |
0.032 |
50 |
|
ULTRA-C-250-2F |
0.25 |
0.375 |
0.062 |
50 |
|
ULTRA-C-250-3F |
0.25 |
0.438 |
0.093 |
50 |
|
ULTRA-C-250-4F |
0.25 |
0.5 |
0.125 |
50 |
|
ULTRA-C-250-5F |
0.25 |
0.625 |
0.187 |
50 |
|
ULTRA-C-250-6F |
0.25 |
0.75 |
0.25 |
50 |
|
ULTRA-C-312-1F |
0.312 |
0.375 |
0.032 |
50 |
|
ULTRA-C-312-2F |
0.312 |
0.438 |
0.062 |
50 |
|
ULTRA-C-312-3F |
0.312 |
0.5 |
0.093 |
50 |
|
ULTRA-C-312-4F |
0.312 |
0.563 |
0.125 |
50 |
|
ULTRA-C-312-5F |
0.312 |
0.688 |
0.187 |
50 |
|
ULTRA-C-312-6F |
0.312 |
0.813 |
0.25 |
50 |
|
ULTRA-C-375-1F |
0.375 |
0.438 |
0.032 |
50 |
|
ULTRA-C-375-2F |
0.375 |
0.5 |
0.062 |
50 |
|
ULTRA-C-375-3F |
0.375 |
0.563 |
0.093 |
50 |
|
ULTRA-C-375-4F |
0.375 |
0.625 |
0.125 |
50 |
|
ULTRA-C-375-5F |
0.375 |
0.75 |
0.187 |
50 |
|
ULTRA-C-375-6F |
0.375 |
0.875 |
0.25 |
50 |
|
ULTRA-C-500-1F |
0.5 |
0.563 |
0.032 |
50 |
|
ULTRA-C-500-2F |
0.5 |
0.625 |
0.062 |
50 |
|
ULTRA-C-500-3F |
0.5 |
0.688 |
0.093 |
50 |
|
ULTRA-C-500-4F |
0.5 |
0.75 |
0.125 |
50 |
|
ULTRA-C-500-5F |
0.5 |
0.875 |
0.187 |
50 |
|
ULTRA-C-500-6F |
0.5 |
1 |
0.25 |
50 |
|
ULTRA-C-625-1F |
0.625 |
0.688 |
0.032 |
50 |
|
ULTRA-C-625-2F |
0.625 |
0.75 |
0.062 |
50 |
|
ULTRA-C-625-3F |
0.625 |
0.813 |
0.093 |
50 |
|
ULTRA-C-625-4F |
0.625 |
0.875 |
0.125 |
50 |
|
ULTRA-C-625-5F |
0.625 |
1 |
0.187 |
50 |
|
ULTRA-C-625-6F |
0.625 |
1.125 |
0.25 |
50 |
|
ULTRA-C-750-1F |
0.75 |
0.813 |
0.032 |
50 |
|
ULTRA-C-750-2F |
0.75 |
0.875 |
0.062 |
50 |
|
ULTRA-C-750-3F |
0.75 |
0.938 |
0.093 |
50 |
|
ULTRA-C-750-4F |
0.75 |
1 |
0.125 |
50 |
|
ULTRA-C-750-5F |
0.75 |
1.125 |
0.187 |
50 |
|
ULTRA-C-750-6F |
0.75 |
1.25 |
0.25 |
50 |
|
ULTRA-C-875-1F |
0.875 |
0.938 |
0.032 |
50 |
|
ULTRA-C-875-2F |
0.875 |
1 |
0.062 |
50 |
|
ULTRA-C-875-3F |
0.875 |
1.0625 |
0.093 |
50 |
|
ULTRA-C-875-4F |
0.875 |
1.125 |
0.125 |
50 |
|
ULTRA-C-875-5F |
0.875 |
1.25 |
0.187 |
50 |
|
ULTRA-C-875-6F |
0.875 |
1.375 |
0.25 |
50 |
|
ULTRA-C-1000-1F |
1 |
1.0625 |
0.032 |
50 |
|
ULTRA-C-1000-2F |
1 |
1.125 |
0.062 |
50 |
|
ULTRA-C-1000-3F |
1 |
1.187 |
0.093 |
50 |
|
ULTRA-C-1000-4F |
1 |
1.25 |
0.125 |
50 |
|
ULTRA-C-1000-5F |
1 |
1.375 |
0.187 |
50 |
|
ULTRA-C-1000-6F |
1 |
1.5 |
0.25 |
50 |
